How Network Cabling Installation Works: The Quick Breakdown (With Real-World Examples)
Most people only notice network cabling when it is messy, unreliable, or in the way. You will see it when someone drags a desk across the room and a cable pops loose. Or when a new Wi-Fi access point gets installed and the “temporary” patch cord becomes a permanent trip hazard.
A solid network cabling installation does more than get you online. It sets you up for easy changes, keeps troubleshooting simple, and gives your IT team a closet they can actually work in — without playing “guess which cable is which.”
Below is the quick, real-world breakdown — what happens before install day, what happens during the work, and what good looks like when the crew leaves.
Key Takeaways
- A good install starts with scoping: what needs a drop, where it should land, and what growth looks like.
- Pathways and closet layout determine whether the installation stays clean forever or needs constant rework.
- Pulling and terminating is only half the job — labeling and standards make it maintainable.
- Testing and as-builts turn your cabling from mystery wires into usable infrastructure.
What Happens Before the First Cable Gets Pulled
Start With Scoping, Not Shopping
The installer — or your IT lead — should walk the space and answer a few basic questions. How many drops per workstation? How many conference rooms need hardwired ports? Where do printers, cameras, access points, or VoIP phones land? Where is the telecom room (MDF/IDF), and what condition is it in?
Here is the part most people skip: scope for change. If you move teams around quarterly, you want consistent port placement and extra capacity. If you are building out a warehouse with long aisles, you want predictable cable routes and thoughtful IDF placement. That way you avoid running copper past distance limits or hanging switches in random corners.
Real-World Example: A 40-Person Office Expansion
The business adds 20 desks and two new conference rooms. The fast approach adds drops only where new desks go. The smarter approach maps the whole floor and standardizes: two data ports per desk location (even if one stays unused), dedicated drops for each conference room display and VC setup, and planned cable routes that do not rely on fishing lines later. That scoping decision prevents the next expansion from turning into ceiling tiles and guesswork.
Deliverables to Have Before Install Day
Get these confirmed before anyone pulls a single cable:
- A simple port map — it does not need to be fancy
- A closet plan covering rack and wall layout, patch panel count, and labeling scheme
- Clarity on cable type — Cat6 vs. Cat6A vs. fiber uplinks — based on what you support now and what you realistically expect to support in the next few years
.

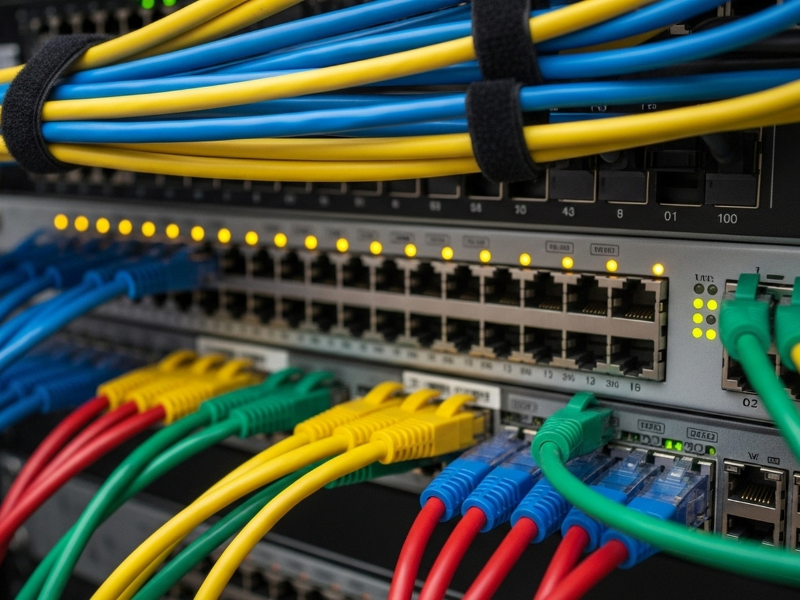

Install Day: Pathways, Pulls, Terminations, and Labeling
Once the plan is set, the work follows a predictable flow: prep pathways, pull cable, terminate, label, dress cables, then patch into equipment.
Pathways First
Pathways determine whether an install stays clean or falls apart. A well-run job uses cable tray, J-hooks, conduit, or proper supports so cables do not rest on ceiling tiles or drape over lights. Separation matters too — data cabling should not hug power lines or noisy equipment runs.
The goal is repeatability. When the next cable goes in, there should be an obvious place for it. That is the core of the “structured” mindset: design the system like someone will maintain it, not like it is a one-time event. This same logic drives a proper
ne-time event. If you want a reference for what that looks like in practice—closet organization, standardized pathways, and a clean subsystem approach—this is the same logic behind a proper structured cabling installation plan.
Pulling Cable
The quality differences show up in the details:
- Avoiding sharp bends and crush points
- Not over-tensioning pulls, especially in bundles
- Leaving service loops where they make sense — at the closet and some work areas — without creating spaghetti
- Keeping bundles neat, not zip-tied into a strangled snake
Cat6 vs. Cat6A — The Decision That Matters
For higher bandwidth, dense PoE loads — access points, cameras, phones — or more headroom for 10GbE over copper, Cat6A is often the right call. It handles heat dissipation in bundles better than earlier categories and performs reliably over standard channel distances. Cisco identifies Category 6A as a high-performing copper option supporting 10 Gbps up to 100 meters, with specific PoE-related benefits tied to construction and heat dissipation when cables run in bundles.
Termination and Labeling
This is where “good enough” gets expensive. Terminating cleanly means consistent pinouts, consistent hardware, and consistent labeling at both ends — work area and patch panel. Labeling is not a bonus. It prevents your next move, add, or change from turning into tone-and-probe time.
A simple scheme works: Closet/Panel-Port → Room/Jack, with the same ID printed at both ends.
A few practical rules for the people who will live with this installation:
- Pick a labeling format that fits on a jack label without abbreviations only one person understands
- Do not mix termination standards across the building without a good reason
- Use short patch cords in the closet — do not use 15-foot cords to solve a port planning mistake
- Photograph racks and panels when the job is fresh — those photos become instant reference later
For a direct view of what a professional network cabling installation scope covers — drops, terminations, organization, and clean finish expectations — compare your plan against a service outline and confirm you are not missing basics.
After Install: Testing, Certification, and Documentation
The install is not done when the cable is in the wall. It is done when you can trust every drop, identify it instantly, and prove it meets the performance you planned for.
Distance and Channel Limits
Start with the standard that saves everyone time. In commercial cabling standards, a “channel” includes more than just the horizontal cable — it includes connectors and patch cords too. A standard channel model runs up to 100 meters total, with the permanent link typically capped at 90 meters, leaving room for patch cords and connectors at each end.
Why it matters: if someone says “the run is only 95 meters” but means just the cable in the ceiling, you can still blow past the channel limit once patch cords and terminations add up.
Testing
Match your testing to the promise. For copper, verify wire map, length, and performance metrics based on the standard and certification level you are targeting. For fiber, handle end-faces properly, check polarity, and test in a way that makes link performance predictable. Even without top-tier certification reports on every run, enough testing prevents the classic “works on some ports, sometimes” problem.
Documentation
Good documentation stops being a formality and becomes your operating manual. A solid as-built includes:
- Panel and port to room and jack mapping — no gaps, no “TBD”
- Closet layout showing what is mounted where
- Notes for special endpoints — access points, cameras, uplinks, ISP handoff
- A change log format so updates do not die in someone’s inbox
Physical Protection
This is not about paranoia — it is about preventing avoidable downtime. NIST guidance on physical protection calls for limiting physical access to equipment and explicitly addresses “support infrastructure” — locked wiring closets, cabling protection via conduit or cable trays, and controls that reduce opportunities for tampering.
In plain terms: a network closet that doubles as a shared storage room with an unlocked door is a reliability and security problem. Fixing it costs less than one serious incident or a string of “mystery unplug” outages.
When to Add Fiber
Longer building-to-building runs, high-interference areas, and future bandwidth growth you do not want to gamble on all point toward fiber as the backbone with copper at the edge. A service scope like fiber optic cabling covers the practical design choices — single-mode vs. multimode, backbone planning, and implementation — so you connect closets and buildings without painting yourself into a corner.
Conclusion
A network cabling installation works best when you treat it like infrastructure you will maintain — not a one-time project. The real win is making every future move, add, and troubleshoot straightforward.
