Plenum cable in Dallas commercial buildings is a code requirement — not an upgrade option. Whether your building requires it depends on your ceiling construction. Getting this wrong creates a fire code violation and potential insurance liability. This guide explains what plenum cable is, when Dallas commercial projects require it, and how to verify your building’s requirement before cabling work begins.
What Plenum Cable Actually Is
Plenum cable in Dallas — and everywhere else in the United States — refers to cable with a specific type of jacket material designed for installation in air-handling spaces. The term “plenum” describes the air handling portion of a building’s HVAC system: the spaces above drop ceilings and below raised floors that circulate conditioned air throughout the building.
Standard cable jackets are made from PVC (polyvinyl chloride). PVC is fine for most environments, but when it burns, it releases toxic chlorine gases. In a plenum space — where air is actively circulated — those gases would travel throughout the building’s HVAC system immediately.
Plenum-rated cable uses a jacket made from either low-smoke PVC or FEP (fluorinated ethylene polymer). These materials produce significantly less toxic smoke when exposed to fire. They’re required by the National Electrical Code (NEC) in any space used for air handling.
When Plenum Cable Is Required in Dallas Commercial Buildings
Plenum cable in Dallas is required any time cabling runs through a space that serves as the return air path for HVAC — regardless of whether you can see air moving through it.
The most common scenario in DFW commercial offices: drop ceilings (also called acoustic tile ceilings). In most commercial buildings, the space above the drop ceiling tiles is the plenum — the return air path for the HVAC system. Any cable running through that space must be plenum-rated.
This covers the vast majority of Dallas commercial office buildings. If your office has a drop ceiling, your horizontal cabling almost certainly runs through a plenum space and requires plenum-rated cable.
Non-plenum (also called CMR or riser-rated) cable is acceptable in:
- Conduit that is sealed from the plenum space
- Spaces that have their own return air ducts (not a plenum design)
- Walls and enclosed pathways that don’t communicate with plenum air handling
In practice, most DFW commercial cabling contractors default to plenum-rated cable for all horizontal runs in commercial buildings. The cost difference is modest — typically 10 to 20 percent more than non-plenum cable. The fire code compliance and liability protection it provides is non-negotiable.
Plenum Cable in Dallas: The Code Framework
The requirement for plenum cable comes from two overlapping code frameworks.
The National Electrical Code (NEC), Article 800. The NEC governs communications cabling installation in the United States. Article 800 addresses communications circuits and specifies that cables installed in plenum spaces must meet the CMP (Communications Plenum) rating. This is the designation on plenum-rated Cat6A cable — CMP.
Local Dallas and DFW building codes. Texas adopts the NEC as its base electrical code, and DFW municipalities enforce it. Dallas, Plano, Frisco, McKinney, and surrounding cities all require plenum-rated cable in air-handling spaces. Some jurisdictions have additional requirements — always confirm with the specific city’s building department for any permitted low-voltage work.
The ANSI/TIA-568 standard addresses cable ratings within the context of installation environments and references NEC requirements for plenum spaces. A TIA-compliant installation in a plenum environment uses plenum-rated cable — this isn’t optional in a standards-compliant installation.
How to Identify Your Building’s Requirement
Before any cabling work begins, determine whether your Dallas commercial space has a plenum ceiling. Here’s how.
Ask the building manager. The building’s mechanical drawings show whether the ceiling space is designed as a plenum return. Any building manager should be able to answer this question or produce the documentation.
Look at the HVAC design. In a plenum design, air returns through the ceiling space — there are no dedicated return air ducts running to individual vents. In a ducted design, you’ll see sheet metal ductwork running through the ceiling space for both supply and return air.
Look at existing cable. If cabling already exists in the ceiling, check the jacket markings. Plenum-rated cable is marked “CMP” on the jacket. Non-plenum cable is marked “CMR” (riser) or “CM.” If the existing cable above your drop ceiling is CMP-marked, your building has a plenum ceiling and requires plenum-rated cable.
When in doubt, use plenum. A professional cabling contractor should never install non-plenum cable in a space without verifying that it’s not a plenum environment. The default position for any DFW commercial installation is plenum-rated cable.
Plenum vs. Non-Plenum Cable: What the Difference Costs
The cost difference between plenum and non-plenum Cat6A cable is real but modest. Plenum-rated Cat6A (CMP) typically costs 15 to 25 percent more per foot than non-plenum Cat6A (CMR).
For a 100-drop commercial installation with average run lengths, the material cost difference between plenum and non-plenum cable runs approximately $800 to $2,000 depending on drop count and run length. That’s a meaningful number but not a decision-driving one when weighed against the fire code compliance requirement and the liability exposure of a non-compliant installation.
Panduit and other major cabling system manufacturers produce full Cat6A plenum product lines that carry the same 25-year system warranty as their non-plenum equivalents when installed by certified contractors. Plenum-rated cable is not a compromise on performance — it meets the same TIA electrical performance specifications as non-plenum cable of the same category.
What Happens If Non-Plenum Cable Is Installed in a Plenum Space
This question comes up when a contractor proposes non-plenum cable to reduce bid cost — or when legacy non-plenum cable is discovered during a renovation.
Installing non-plenum cable in a plenum space creates several problems.
Fire code violation. A building inspection that identifies non-compliant cable in a plenum space can result in a stop-work order, required remediation (removing and replacing the cable), and reinspection before the space can be occupied.
Insurance exposure. If a fire occurs and non-compliant cable contributed to smoke or toxic gas spread, the building owner and tenant may face insurance claim complications. Non-compliant installations create liability that plenum-rated cable eliminates.
Remediation cost. Replacing non-plenum cable with plenum-rated cable after a finished installation means cutting open finished surfaces, pulling out the old cable, re-running compliant cable, and re-finishing the surfaces. It costs substantially more than installing the right cable the first time.
BICSI installation standards are explicit about cable rating requirements. A BICSI-trained installer will not install non-plenum cable in a plenum space.
Plenum Cable in Dallas: Getting the Specification Right

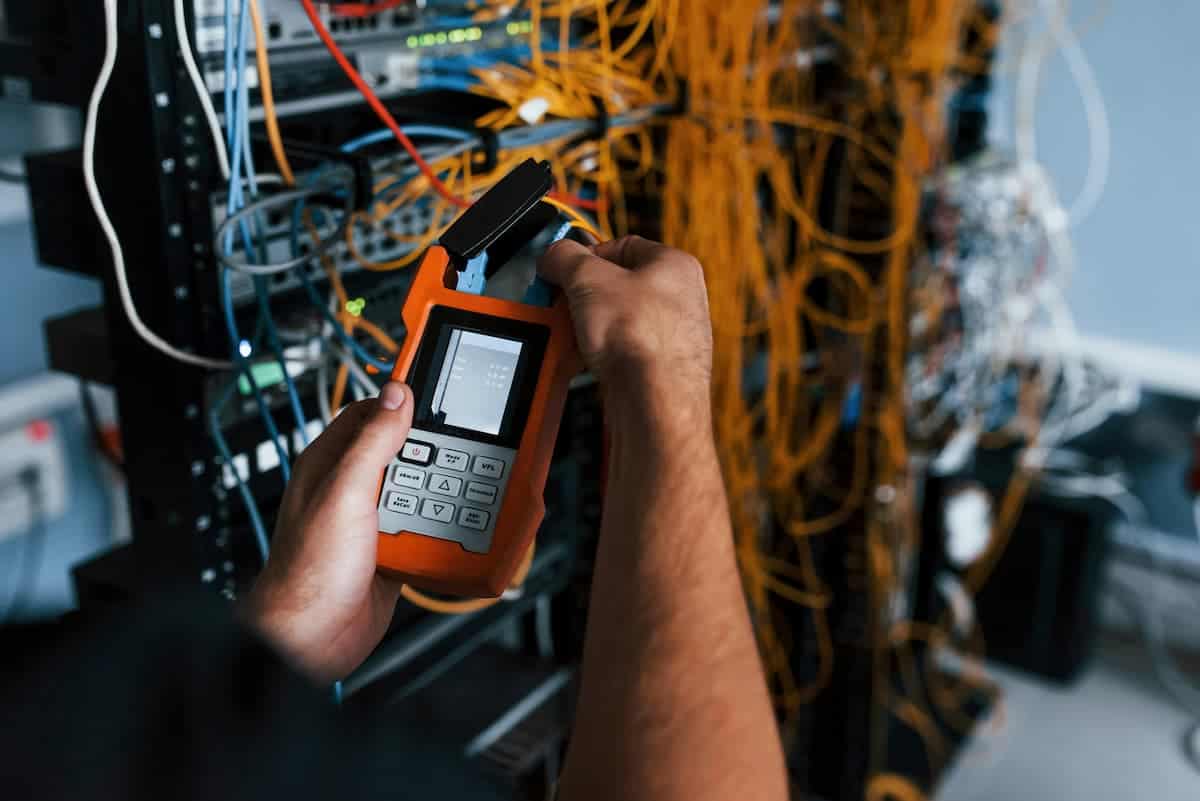

Just Cabling specifies and installs plenum-rated Cat6A cable on every Dallas commercial project where the ceiling environment requires it. We assess the plenum designation of your building during the site walk — before a scope is written or a cable is ordered. Our commercial structured cabling services include code-compliant installation with certified Fluke test documentation on every run.
Getting the cable rating right at the specification stage costs nothing. Getting it wrong costs everything. Request a free site assessment and we’ll verify your building’s requirement before any work begins.
